Apptimized AdminCenter Admin Manual

Prerequisites and firewall rules

The following prerequisites apply for Apptimized AdminCenter:

1. Browsers:

2. Enabled Java-script in browser

3. Firewall white list:

Component

Description

https://auth.apptimized.com/

Address for single sign-on

https://admin.apptimized.com/

Address for manage organization configurations

https://docs.apptimized.com/

Address for Apptimized user documentation

*.chatlio.com

Address for access to support chat widget



Organization Management

About Organization Management

Organization Management application enables a user with an interface to manage organization configurations (i.e., organization information, security settings, white labeling), as well as manage users and monitor subscriptions within the organization.

The Organization Management application is available under the https://admin.apptimized.com

Before starting the organization's configurations management, signing in the SSO application is required.

A user can be granted the following roles:

Role  Scope of permissions
Billing administrator  Organization configurations management
User administrator  User’s accounts management
Subscriptions monitoring

Note. A user can be granted the Billing administrator and User administrator roles simultaneously.

The screenshot below shows the starting page for a user with the Billing administrator and User administrator roles simultaneously:


Users tab

This tab enables a user:

General overview

Users tab interface:


Users data is grouped into the following categories:

The user’s data is performed in 2 blocks:




Column name  Details
First name  User’s first name (e.g., Jane
Last name  User’s family name (e.g., Doe
Enabled

This option indicates the state of the user’s account.

True and False options available.

True – user’s account is enabled.

False – user’s account is disabled.

Email confirmed

This option indicates whether a user’s email has been confirmed.

True and False options available.

True – the user’s email is confirmed.

No – the user’s email isn’t confirmed.

Two-factor enabled

This option indicates whether a two-factor authentication has been enabled to a user’s account.

True and False options available.

True – two-factor authentication is enabled.

False – two-factor authentication is disabled.

Organization name  This option indicates the organization to which a user’s account is assigned to (e.g., Test Organization

The columns in the portfolio table can be swapped and grouped in any order. A user can drag and drop a column header to a suitable place.


To sort data in columns First nameLast nameEmailEnabledEmail confirmedTwo Factor enabled, and Organization name select ascending or descending mode:



To filter data in columns First nameLast nameEmailEnabledEmail confirmedTwo Factor enabled, and Organization name use Menu option on the column heading > Select a filter rule in drop-down list > Contains / Not contains / Equal / Not equal / Starts with / Ends with > Enter the value into the Filter field.




Enabling multi-rule filtering is available within the column. A user can add two filtering rules at the same time.


The option to download Users section information in CSV is available under Download csv button.


Add a user

The option to add a new user is available under the Add user button:


Apptimized shows the following screen when successful:


Field name

Details

Default value

Email

User’s email (e.g., jdoe@apptimized.com).

This field is required.

n/a

First name

User’s first name (e.g., Jane)

n/a

Last name

User’s family name (e.g., Doe)

n/a

Organization

This field indicates the organization to which a user’s account is assigning to.

This field is required.

The option to assign organization to user’s account is available under the Organization field > Select organization name from drop-down list.

n/a

Timezone

This field the time zone the user's account will be associated with.

This field is required.

n/a

Occupation

User’s occupation in the organization (e.g., CTO)

 n/a

Department

A name of the department a user is affiliated in the organization (e.g., Infrastructure)

 n/a

Enabled

This option indicates the state of user’s account. The following options available:

ten_10_1.PNG - An account is enabled

ten_10_2-1.png - An account is disabled

Enabled

Email confirmed

This option indicates whether a user’s email needs to be confirmed.

The confirmation occurs via link sent in Account creation confirmation email.


The following options available:

ten_10_1.PNG - A confirmation email is enabled

ten_10_2-1.png - A confirmation email is disabled

Enabled

Two-factor enabled

This option indicates whether a two-factor authentication has been enabled to a user’s account. The following options available:

ten_10_1.PNG - A two-factor authentication is enabled

ten_10_2-1.png - A two-factor authentication is disabled

Disabled

A user account settings are persisted on click Save button.

Apptimized shows the following screen when successful:


Edit user’s information

The option to edit user’s information is available under the Actions column > pen.PNG symbol.


Apptimized shows the following screen when successful:


A user account changes are persisted on click Save button.

Manage subscriptions

The option to manage subscriptions is available under the Users tab > Select a user > Actions column > pen.PNG symbol > Subscriptions tab > Add user to subscription(s) > Select SKU from the list > Save button:


Note. The Comment section provides a user with additional information about the subscription.
This section corresponds to the optional field Comment in the SKU creation form (available only for Apptimized support team and delivery managers).


The option to delete subscriptions is available under the Users tab > Select a user > Actions column > pen.PNG symbol > Subscriptions tab > Actions column > stop.PNGsymbol:


Apptimized shows the following notification when successful:


Delete user

The option to edit user’s information is available under the Actions column > stop.PNGsymbol > Confirmation modal window > Confirm button.


Apptimized shows the following notification when successful:


My organization tab

This tab enables a user:

The following screen shows the Organizations tab interface:


Organizations data is grouped into the following tabs:

General tab

This tab enables a user:







An organization’s general settings changes are persisted on click Save button.

White labeling

Apptimized shows the following screen when successful:


To configure the SSO White labelling functionality, the customer needs to create CNAME records under the Domain Name System for the following address: auth.api.apptimized.technology and transfer the record to the delivery manager or to Apptimized team directly. For the white label configuration, the Let's Encrypt SSL certificate is used by default.

Component

Description

CNAME

Record created with customer's DNS provider using the following configuration:

CNAME %subdomain%.%customerdomain%.%TLD% = auth.api.apptimized.technology

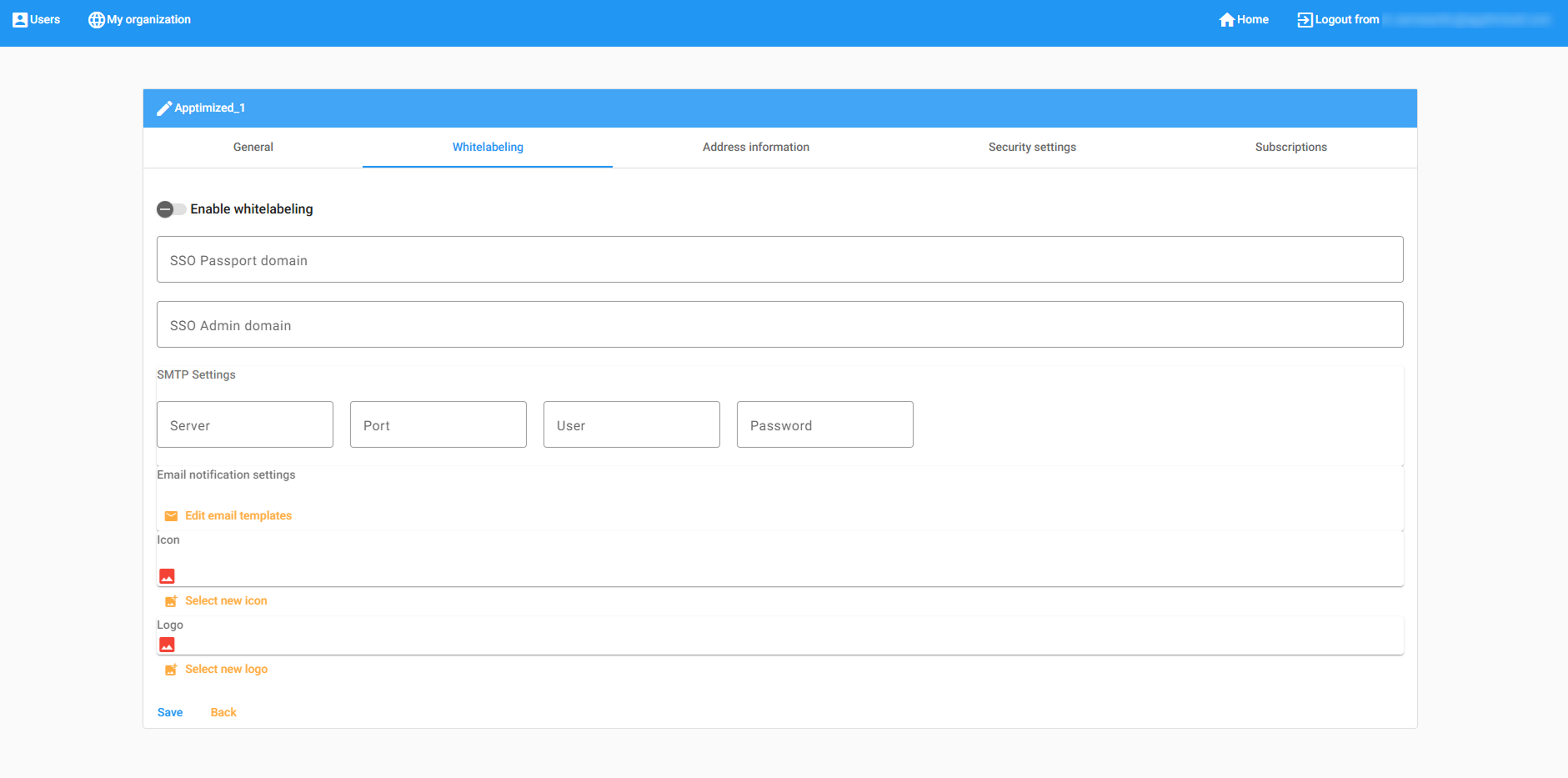

This tab enables a user to configure white labeling components:

Setting Details
1. Domain

This field indicates the domain name where a user will be redirected for authentication:

  • the domain name may be a string that is formed according to the rules of the Domain Name System (e.g., example.com).
  • the domain may be an IP address (e.g., 192.168.1.1)

Two fields available:

  • SSO Passport domain (enables a user to whitelabel the auth.apptimized.com)

    Example: apptsso.customerdomain.com pointing to auth.api.apptimized.technology

  • SSO Admin domain (enables a user to whitelabel the admin.apptimized.com)

    Example: admin.customerdomain.com pointing to auth.api.apptimized.technology

Data type: String / Numeric

2. SMTP Settings

SMTP (Simple Mail Transfer Protocol) settings indicate the set of configurations of the communication protocol for email transmission.

This feature enables an organization to email out using the organization’s email (instead of apptimized.com).

2.1. Server

This field indicates the URL of the SMTP server (e.g., smtp.example.com).

Data type: String / Numeric

2.2. Port

This field indicates the port number which is used for transport protocol (e.g., 25)

Data type: Numeric (no longer than six digits).

2.3. User

This field indicates the full email address which will be used for white labeled email exchange and delivery (e.g., name@example.com)

Data type: String / Numeric

2.4. Password

This field indicates the valid password to the email assigned in the User field.

Data type: String / Numeric

3. Icon

This field enables a user to upload an image that will be implemented as a favicon icon in Apptimized Portal.

The file upload must be less than 100 kb and ICO only.


4. Logo

This field enables a user to upload an image that will be implemented as organization’s logo in Apptimized Portal.

The file upload must be less than 2 mb and PNG / JPEG only


Note. The option to delete uploaded file is available under:


White labeling settings are persisted on click Save button.

Address information

This tab enables a user to edit the organization's address.

Apptimized shows the following screen when successful:


Address changes are persisted on click Save button.

Security settings

Apptimized shows the following screen when successful:


This tab enables a user to configure security components which apply to all organization’s users:

Setting Details Default value
Session expiration (in minutes)

A session is automatically expired after the number of minutes has run out in this setting.

In case of this field’s value is 0 the session doesn’t expire.

0
Wrong login retries

This option determines the maximum amount of failed login attempts.

Apptimized blocks an account when a user is out of attempts.

10
Invite link lifetime (in hours) An invitation link is automatically expired after the number of hours has run out in this setting. 0
Use Two-factor authentication

This option sets up the two-factor authentication for all users within the organization.

On (ten_10_1.PNG) and Off (ten_10_2-1.png) options available.

Off
Password security
Required length This option determines the minimum password length 6
Required unique chars This option determines the required amount of unique characters in a password 3
Password expiration (in days)

A password is automatically expired after the number of days has run out in this setting.

In case of this field’s value is 0 the password is permanent.

0
Require digits

This option determines that the use of digits in a password is required (i.e., 0123456789).

On (ten_10_1.PNG) and Off (ten_10_2-1.png) options available.

On
Require lowercase

This option determines that the use of lowercase in a password is required (i.e., abcdefg)

On (ten_10_1.PNG) and Off (ten_10_2-1.png) options available.

On
Require uppercase

This option determines that the use of uppercase in a password is required (i.e., ABCDEFG)

On (ten_10_1.PNG) and Off (ten_10_2-1.png) options available.

On
Require special symbol

This option determines that the use of special symbols in a password is required (i.e., !#$%&'*+-/=?^_`{|}~).

On (ten_10_1.PNG) and Off (ten_10_2-1.png) options available.

On

Security settings are persisted on click Save button.

Subscriptions

Apptimized shows the following screen when successful:


This tab enables a user to monitor the list of subscriptions within the organization.

Subscriptions data is grouped into the following categories:

Column name Details
SKU ID

A unique identifier of a subscription generated for Apptimized products. (i.e., 16).

SKU ID provides subscription identification.

Product This component indicates an Apptimized product that will be available to a user within this subscription.
Comment The component provides a user with additional information about the subscription.
This section corresponds to the optional field Comment in the SKU creation form (available only for Apptimized support team and delivery managers).
Active

This component indicates the state of the subscription.

True and False options available.

True – subscription is enabled.

False – subscription is disabled.

Seats This component indicates the maximum number of users that can be assigned to this subscription.
Users This component provides the list of users who are currently assigned to this subscription

The option to download Subscriptions information in a CSV format is available under Download csv button.
